Description

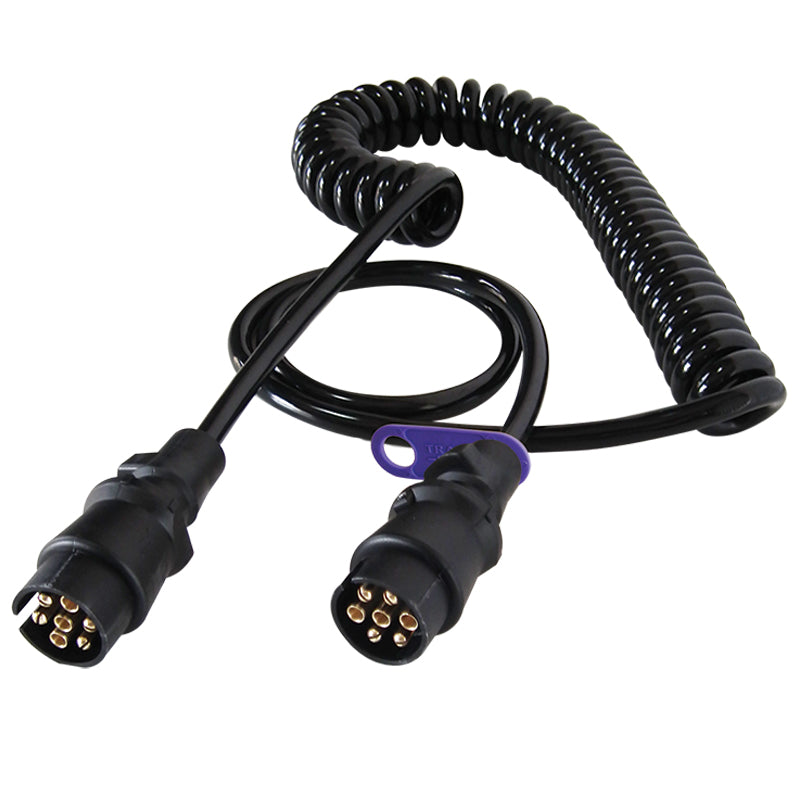

The electrical SUZI Coils offer the ideal PLUG-IN & GO solution for any prime mover trailer combination, or between A and B trailers. The Long Tail Poly-U SUZI Coil with Moulded DIN Plugs coil are made from polyurethane and 2x moulded din plugs with a working length of 4.6m.
| AUSTRALIAN STANDARD | ||
| CONTACT/FUNCTION | COLOUR | NO. |
| Left turn/Hazard | Yellow | 1 |
| Reversing Signal | Black | 2 |
| Earth/Return/Ground | White | 3 |
| Right turn/Hazard | Green | 4 |
| Service brakes/Spare | Blue | 5 |
| Stop | Red | 6 |
| Park/Tail/Number Plate/Markers | Brown | 7 |
