Description

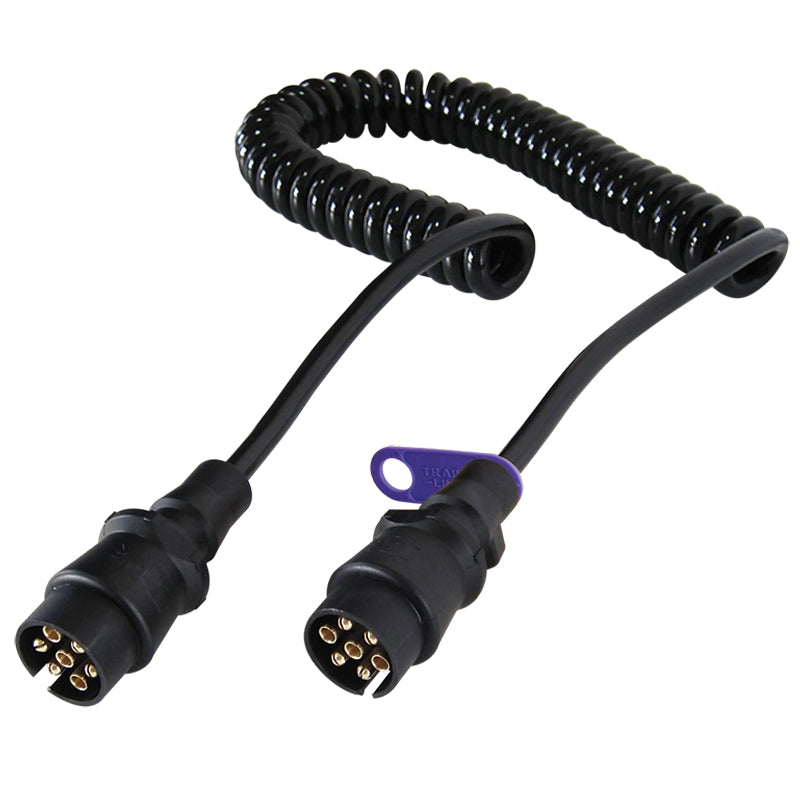

The electrical SUZI Coils offer the ideal PLUG-IN & GO solution for any prime trailer combination, or between A and B trailers. The Short Tail Poly-U SUZI Coil with Moulded Plugs coil are made from polyurethane and 2x moulded din plugs.
| AUSTRALIAN STANDARD | ||
| CONTACT/FUNCTION | COLOUR | NO. |
| Left turn / Hazard | Yellow | 1 |
| Reversing Signal | Black | 2 |
| Earth / Return / Ground | White | 3 |
| Right turn / Hazard | Green | 4 |
| Service brakes/Spare | Blue | 5 |
| Stop | Red | 6 |
| Park/Tail/Number Plate/Markers | Brown | 7 |
- Polyurethane coil
- 2 x Moulded DIN plugs
- Wire sizes: 6 x 1.5mm² + 1 x 2.5mm²
- Working length = 3.6m
