ELECTRICAL SUZI LEAD - STANDARD TO HEAVY DUTY - SHORT TAIL
ELECTRICAL SUZI LEAD - STANDARD TO HEAVY DUTY - SHORT TAIL
Roll over image to zoom in Click on image to zoom
ELECTRICAL SUZI LEAD - STANDARD TO HEAVY DUTY - SHORT TAIL
ELECTRICAL SUZI LEAD - STANDARD TO HEAVY DUTY - SHORT TAIL

ELECTRICAL SUZI LEAD - STANDARD TO HEAVY DUTY - SHORT TAIL

Price:
$158.45

View Thread Identification Chart

Description

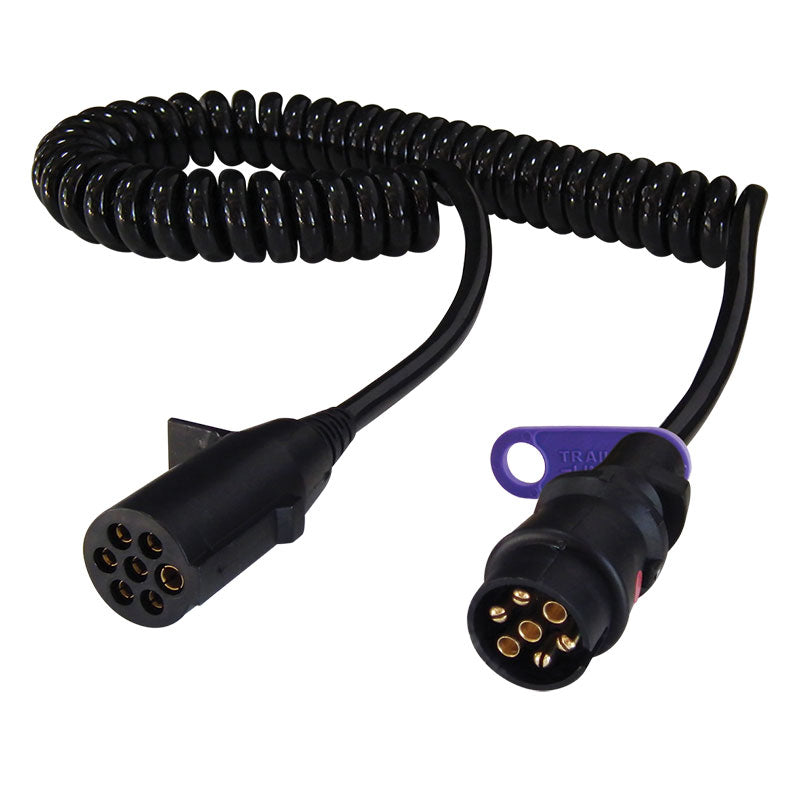

Our Short Tail Poly-U Adapter Electrical SUZI Coil offers the ideal PLUG-IN & GO solution between A and B trailers

AUSTRALIAN STANDARD
CONTACT/FUNCTION COLOUR NO.
Left turn/Hazard Yellow 1
Reversing Signal Black 2
Earth/Return/Ground White 3
Right turn/Hazard Green 4
Service brakes/Spare Blue 5
Stop Red 6
Number plate/Markers Brown 7





  • Polyurethane coil
  • 1 x Moulded DIN plug (AS2513)
  • 1 x Moulded HEAVY DUTY/EURO plug (ISO1185)
  • Wire sizes: 6 x 1.5mm² + 1 x 2.5mm²
  • Working length = 3.6m
  • Adapts from 7Pin HEAVY DUTY/EURO (e.g. Scania, Volvo, Mercedes, MAN, IVECO, DAF) to 7Pin DIN

    •
